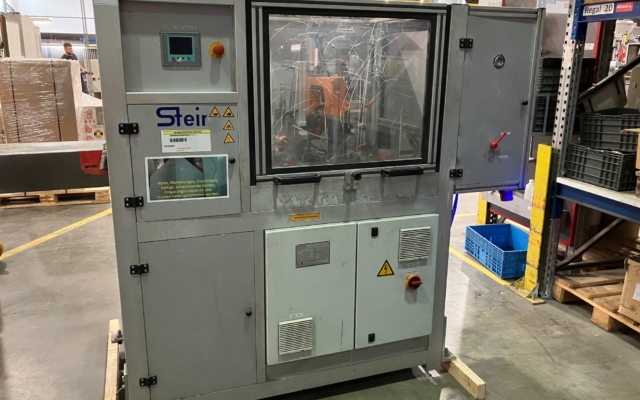

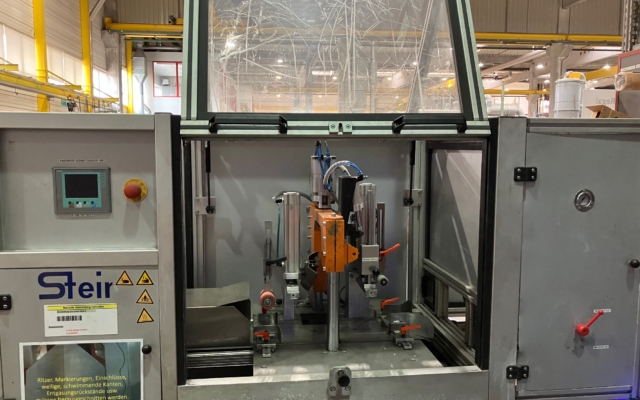

Profile-Guillotine PT1-200 from STEIN Maschinenbau
Useful for window bars, small profiles, main profiles and technical profiles
Max. cutting width: 190 mm, max. cutting height: 120 mm
Extrusion speed: max. 10 m/min Travelling distance for knife: 600 mm
Cutting accuracy: +/- 2 mm
Cutting stroke: 180 mm
Cutting speed continuously adjustable

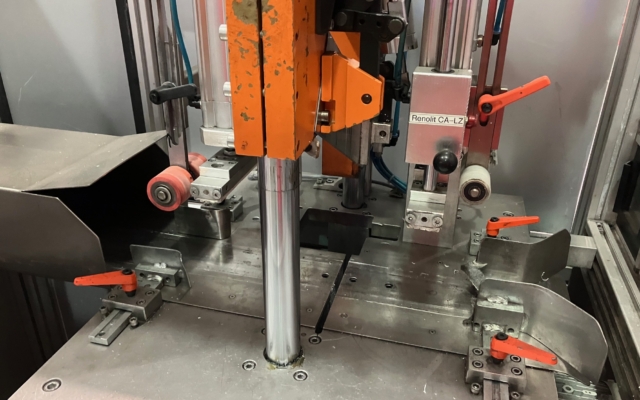

Pneumatic quick-change equipment for knife

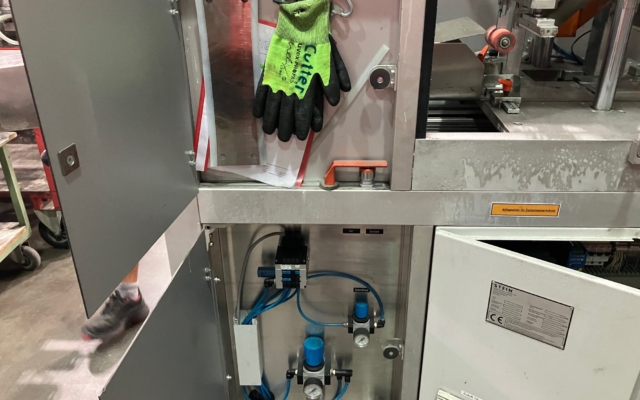

Pneumatic down holder for profile
Knife gets preheated: 80ºC - 160ºC
Cycle time for cuts: 1,5 - 4 sec. adjustable via display

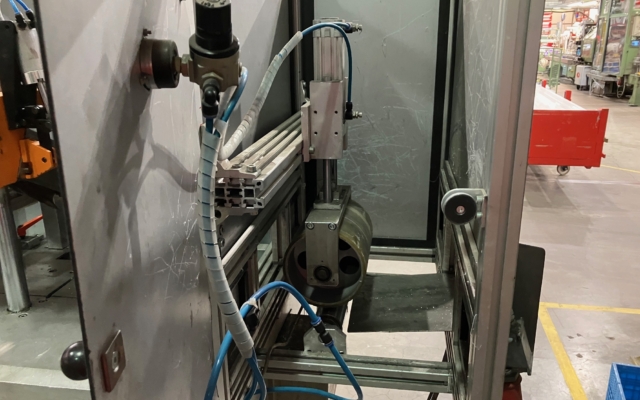

Entry side: Unit for applying a protection foil onto the profile

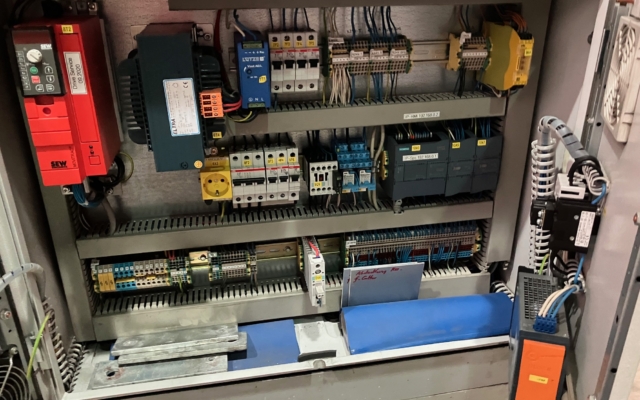

Control system: Compact-SPS Siemens S7-613C
Dimensions: Height: approx. 1.900 mm, extrusion height: 1.100 mm (+/- 50 mm adjustment)

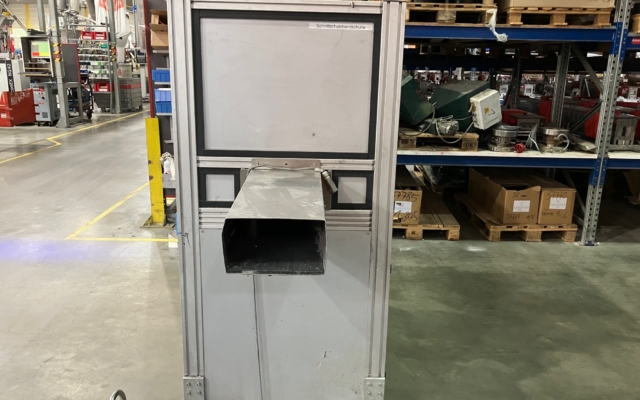

Floor space: approx. 1.450 x 800 mm (without intake & outlet tunnel)
