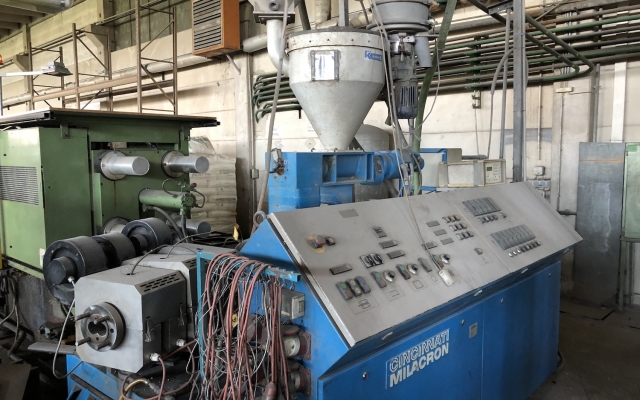

YOM: 2008, running hours: 40.742 h

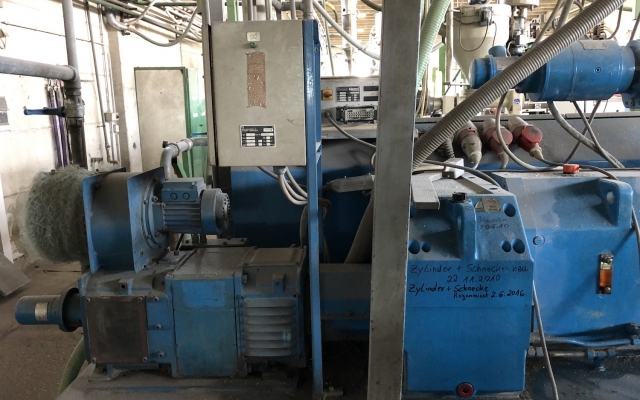

Adjusted motor power: 160 kW
Total connected power: 427 kW
Screw diameter: 135 mm, L/D = 28
Screw speed: 27 rpm

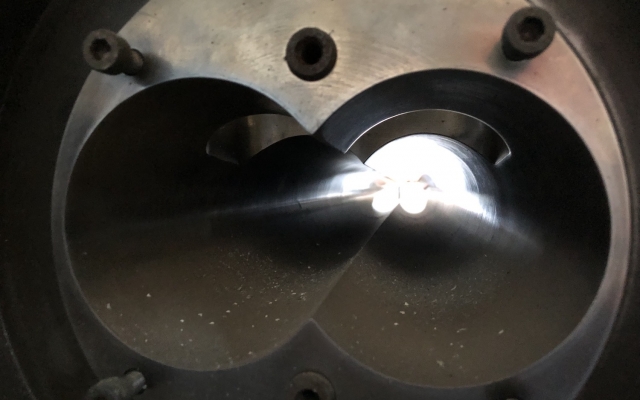

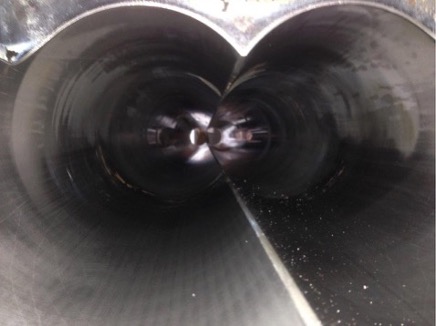

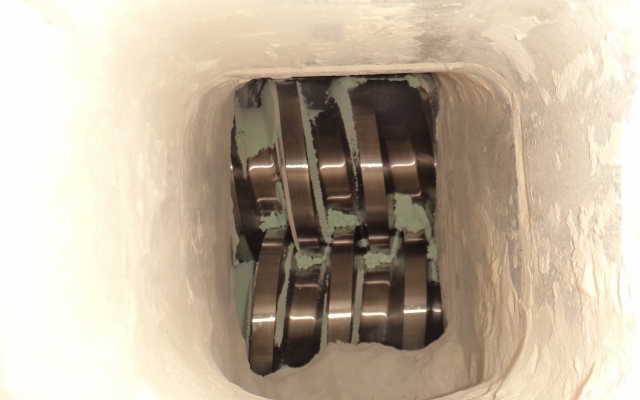

Screw & barrel in tungsten carbide execution (highly wear resistant)
Double venting system for barrel
Force feeder for material
CONPRO 5-components gravimetric dosing system
PLASTICOLOR vacuum conveyors for all components except for main component
Dimensions extruder (L x W x H): approx. 9.000 x 1.600 x 1.300 mm
Weight: approx. 11.000 kg
incl. tooling equipment for WPC decking from GREINER
Mounting frame (L / W / H): 2 x 11.170 / 2 x 380 / 940 – 1.040 mm
Rail distance: 2 x 320 mm
Center-line distance dual: 500 mm
Mounting width (max.): 400 mm
Height-Adjustment: 100 mm
Side adjustment: (+/-) 15 mm
Longitudinal adjustment: 750 mm
Tilt adjustment: (+/-) 10 mm
5 pcs of vacuum pumps each 4.6 kW
incl. 50 pcs of vacuum connections ABA 1/2 ”
4 pcs of cyclone pumps each 1.1 kW
Dimensions (L x W x H): 11.200 x 1.580 x 1.200 mm
incl. calibrators & water tanks
Max. profile dimensions (W x H): 235 x 140 mm (each side)
Contact length for caterpillars: 2 x 2.300 mm
Number of pads: 2 x 55 pcs.
Pad width: 235 mm (each side)
Haul-off force max.: 30 kN (each side)
Haul-off speed: 0.5 – 10 m/min (each side)
Extrusion height adjustment via feet: 1.040 – 1.140 mm
Saw-blade diameter: 500 mm
Saw-motor: 3.4 kW (each side)
Cutting accuracy at 6 m/min: (+/-) 2 mm
Dimensions (L x W x H): 6.700 x 1.900 x 1.810 mm Weight: 4.500 kg
incl. dust exhauster (each side)
GREINER dual tipping table GTT 6,0 (YOM: 2008)
max. profile dimensions (L x W): 6.000 x 420 mm
Working height: 1.040 – 1.140 mm (adjustable)
Dimensions (L x W x H): 5.500 x 1.100 x 1.125 mm Weight: 350 kg (each side)
incl. roll conveyor
Condition: very good, ready for operation

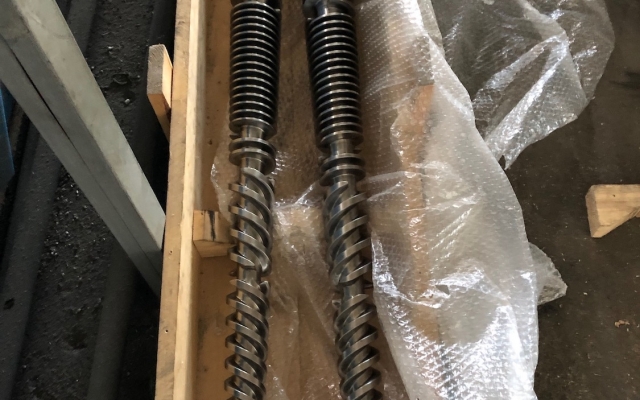

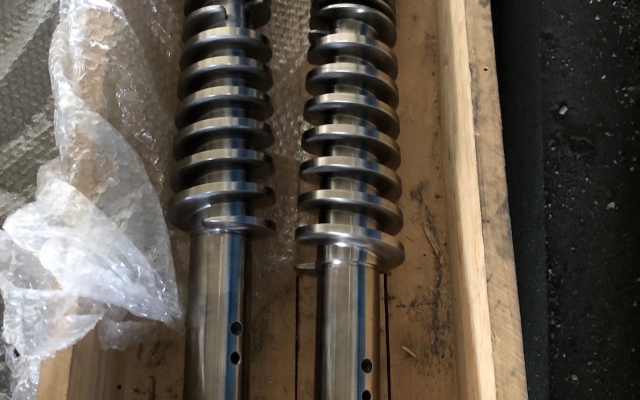

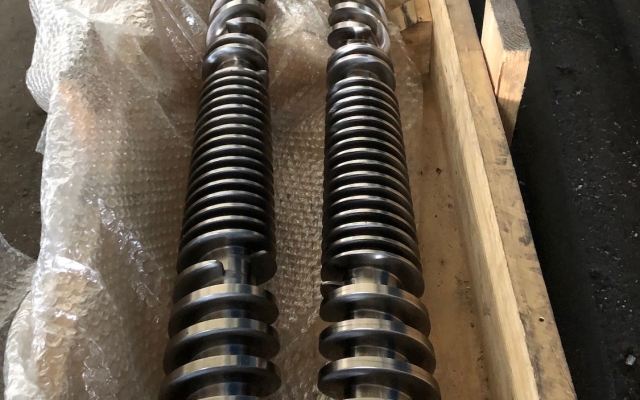

Remark: Spare second-hand S&B in tungsten-carbide available against surcharge
